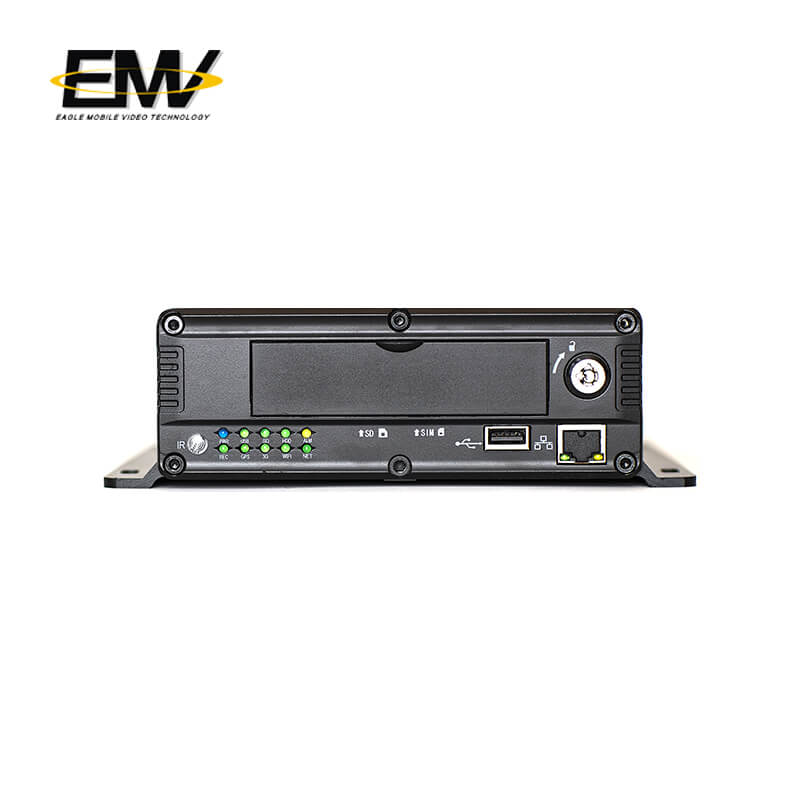

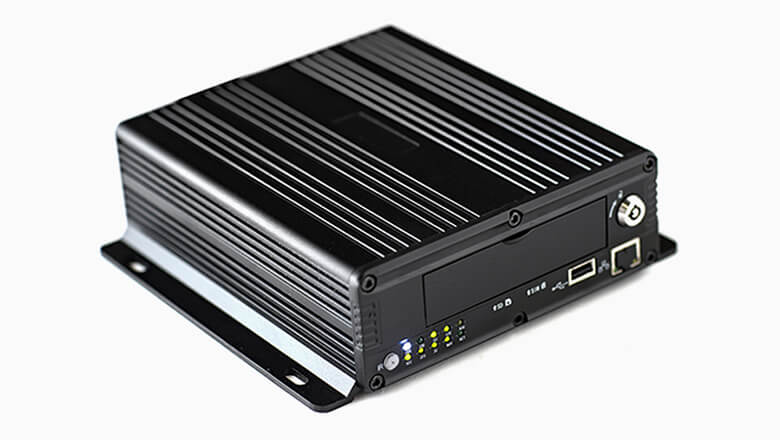

4CH 1080P  AHD HDD SSD GPS 3G 4G WIFI Mobile DVR EMV-HD5101

4CH 1080P AHD HDD SSD GPS 3G 4G WIFI Mobile DVR EMV-HD5101

Model
EMV-HD5101
MOQ
1 PCS
Payment
TT / WesterUnion / Paypal
Delivery Time
In 4 days, Bulk order depends on the quantities
Start Port
ShenZhen
Certification
CE / FCC / Emark
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:



Product Feature


Embedded compact design, low power, high efficient H.264 compress, high reliability.

4CH 1080P HD recording, supports 2TB hard disk & 128GB SD card.

Optional 3G/4G, GPS, WIFI functions.

Built-in G-sensor.

Data protection when in sudden power off, optional inside-laid UPS battery.

Rich external ports, incl. 2x RS232, 2x RS485, 8x alarm in & 2x alarm out ports, VGA etc.

Auto image switch of car left/right turning, backing change.

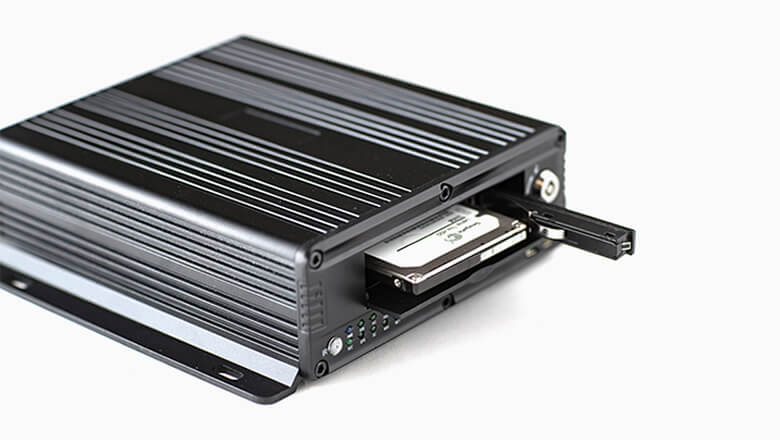

With a simple hard disk installation and a good and reliable anti-shake protection system.

Directly mouse controlled menu entering.

Export of video recordings directly via USB port.

CMS platform ability for big fleet and user management.

Simple easy to operate video playback software


Eagle Mobile Video-Mobile Dvr System 4ch 1080p Ahd Hdd Ssd Gps 3g 4g Wifi
Eagle Mobile Video-Mobile Dvr System 4ch 1080p Ahd Hdd Ssd Gps 3g 4g Wifi-1


Product Specification


ITEMPARAMETER4CH 1080P HDD SSD MDVR EMV-HD5101
SystemLanguageEnglish
Operation SystemLinux
InterfaceImaging menu operation interface (OSD Menu)
Password SecurityTwo levels authority: admin, user
VideoVideo Input4 composite video input
Video Output1 composite video & 1 VGA outputs
Video standardPAL, NTSC
Video compressionH.264 Main profile, 100 frame / sec
Video DisplaySingle/Quad screen video
AudioAudio Input4 audio input
Audio Output1 audio output
Audio CodeG726
Way of recordingSimultaneous AV recording
Image Processing & StorageImage formatCIF/HD1/D1/720p/1080P optional
Standard of Video StreamISO14496-10
Video code rateCIF: 1536Kbps ~ 128Kbps,
HD1: 2048Kbps ~ 380Kbps,
D1: 2048Kbps ~ 400Kbps,
720p: 2048Kbps ~ 4096Kbps,
1080P: 2048kbps~8192kbps
Image quality: Grade 1(best quality) - 8(worst)
Audio Code Rate40KB/s
Data StorageSupport 1x 2TB HDD & 1x 128GB SD storage
AlarmAlarm input8x Alarm input
Alarm output2x Alarm output, with 12V high electrical level
Communication PortRS232 port2x RS232
RS485 port2x RS485
RJ45 Port1x 10M/100M auto adjust Ethernet port
Extendable PortIntercomsupport
Speed pulseExternal connect
OthersLED panel
Wireless Modules3G WCDMAoptional
4G LTEoptional, support TD-LTE/FDD-LTE
WIFIoptional, 802.11b/g/n
GPSOptional, embedded module, show Geo-location, speed etc.
Wireless upload function (Optional)
Acceleration sensorG-sensorBuilt-in
SoftwareVehicle Network Management System (VNMS / CMS)3G video monitoring and GPS tracking etc.
PC/ Web/Android/iPhone/iPad platforms, multi-languages.
Vehicle Analysis Software (VAS)Video playback and analysis
ParameterInstruction
+8V~+36VVoltage Input:+8V~+36V
Power will be auto off to self-protection activated if device is out of this range for long time,
12VVoltage output 12V (+/-0.2V 0), current for max. 4A
≤6VACC Off
≥7.5VACC On
75ΩAverage 75Ω per video channel
2V p-p75Ω per each 2V p-p CVBS signal
0-4VDefined as low level alarm
> 4VDefined as high level alarm
1x HDD slots
1x SD slots
HDD (Hard Disk) of 2.5” SATA, 2TB max.
SD card of current brands, 128GB max.
SD card can be used for recording, upgrade etc.
-20°C~+80°CTemperature in well ventilated condition


Packing & Shipping


We support both OEM & ODM packaging. Our normally delivery method are by the  sea, by air, by international express (DHL, UPS, TNT, FedEx)
