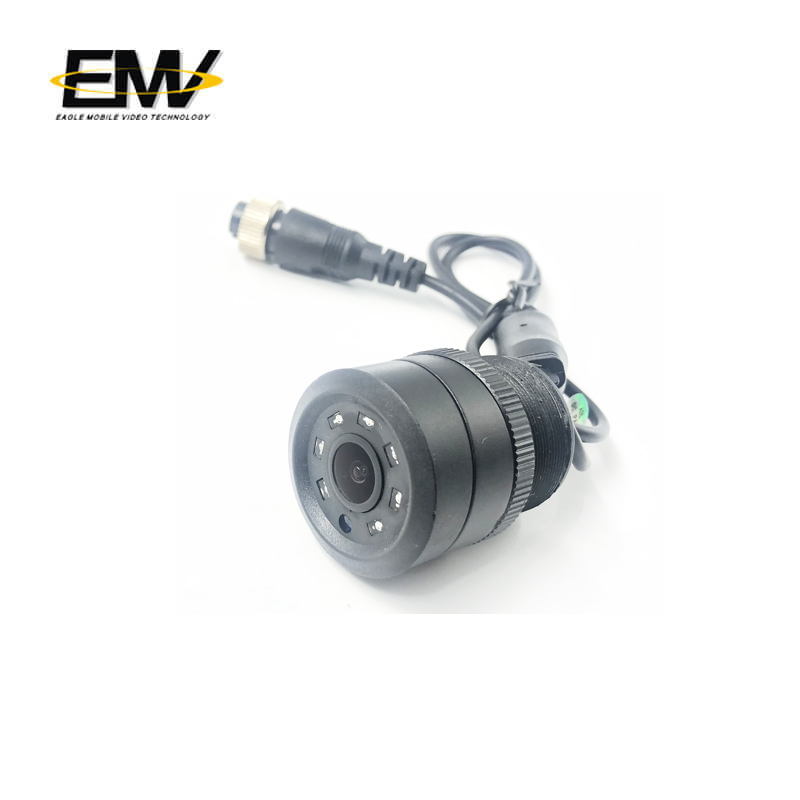

●Mini IP67 Rear view car taxi camera
●Sensor: 1.3 Megapixel 960P AHD
●Lens: 2.5mm
●Lens Angle: 120°
●Audio: Without audio
●Infrared LED light: 7pcs
●IR Distance: 6m
●Waterproof Rate：IP64
●Weight: 0.28KG
●Dimension : 38(W) x30(H) x30(D)mm
●Color: Black
Product Specification
|
Model |
Mini outdoor Rear view Car camera |
|
Image Sensor |
1/3" progressive scan CMOS |
|
Horizontal Resolution |
1.3Mega pixel |
|
TV system |
PAL/NTSC |
|
Effective pixels |
1280(H)*960(V) |
|
Minimum Illumination |
0.01Lux@(F1.2,AGC ON),0Lux with IR |
|
S/N |
≥44dB |
|
Auto Gain Control |
Support |
|
Back light compensation |
Support |
|
White Balance |
AUTO |
|
Digital Noise Reduction |
Adaptive digital noise reduction,2D/3D-DNR |
|
Electronic Shutter |
AUTO/1/50（1/60）-1（50，000Sec） |
|
Video Output |
Follow AHD standard |
|
Image Function |
Original image |
|
Output Adapter |
4P aviation head cable |
|
Lens |
2.5mm |
|
IR LEDS Quantity |
7pcs |
|
IR distance |
6m |
|
IP grade |
IP64 |
|
Operating Temperature/Humidity |
-30°C~+70°C/Humidity≤90%(No condensation) |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
≤1.2W |
|
Dimension |
38*30*30(mm) |
|
Common used in school bus, Bus, truck etc, Car camera |
|
