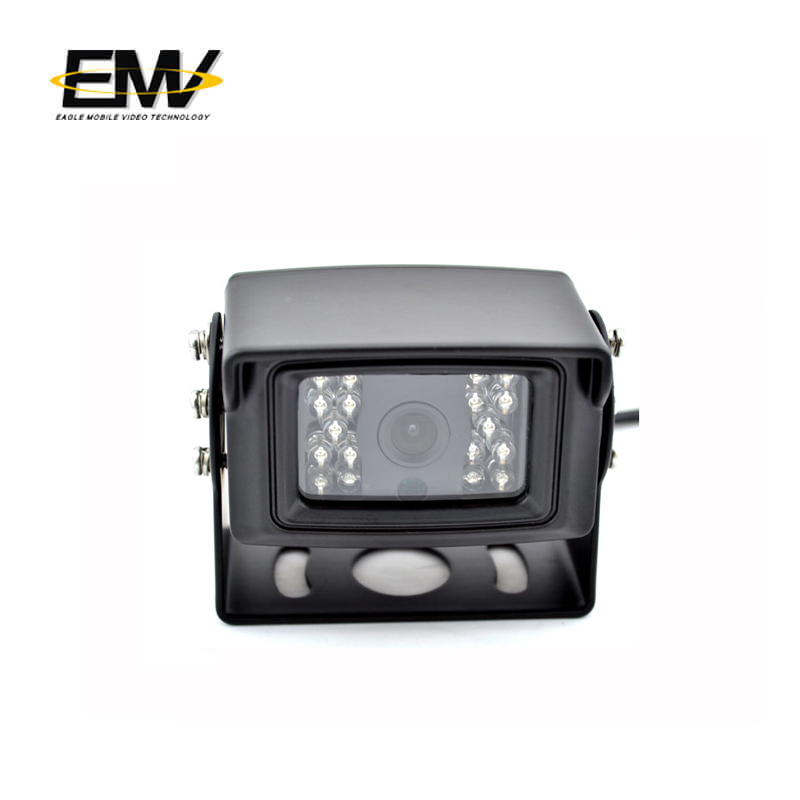

● POE 1080P 960P 720P IP Truck Fleet Rear View camera ;
● H.264 Main Profile,AVI Base Line.
● Main Stream:HD 1920*1080 1-25 fps
● 2.0 Mega Pixel 1080P,1920X1080P ;1.3Megapixel 720P ,1280X720P.
● 18pcs IR LED, IR distance: 15m;
●Megapixel Lens: 2.8mm/3.6mm.
● Audio: Without audio/With Audio Optional;
●Waterproof Rate:IP69.
● Shell material: aluminum alloy,Vandalproof
● Waterproof RJ45 port POE Connector
● With Onvif
● Support Iphone,Ipad,Android
● Support RTSP of Main Stream/Sub Stream
****************Can work with mdvr hikvision ,Dahua, ICar Vision, Streamax MDVR********
| Model | EMV004IL | EMV004IH |
| sensor | 1/4” 720P Megapixel CMOS AHD | 1/3” 1080P Megapixel Sony CMOS |
| Effective Pixels | 720P 1.0 Megapixel | 1080P 2.0Megapixel |
| Signal system | PAL/NTSC | |
| Horizontal resolution | 720P | 1080P |
| minimum illumination | 0lux/F1.2 (LED ON) | |
| Day & Night System Mechanical ICR | Day & Night System Mechanical ICR | |
| Audio | Without Audio/With Audio Optional | |
| lens | F=2.8mm/3.6mm/6mm/8mm | |
| SNR | ≥50dB | |
| Shutter speed | PAL:1/50 s -1/100.000 s, NTSC : 1/60s – 1/100.000 s | |
| W/B | ATW | |
| IR wavelength | 850nm | |
| IR light | 18pcs | |
| IR distance | 15m | |
| Video output | 1Vp-p,75 ohm, BNC | |
| Power supply | DC 12V ± 10% ,0.5A , POE optional | |
| Working temperature | -10℃~+60℃ | |
| Waterproof grade | IP69 | |
| Dimension | 80mm x 51mm x 65mm | |
| Weight | 0.55Kgs | |
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
