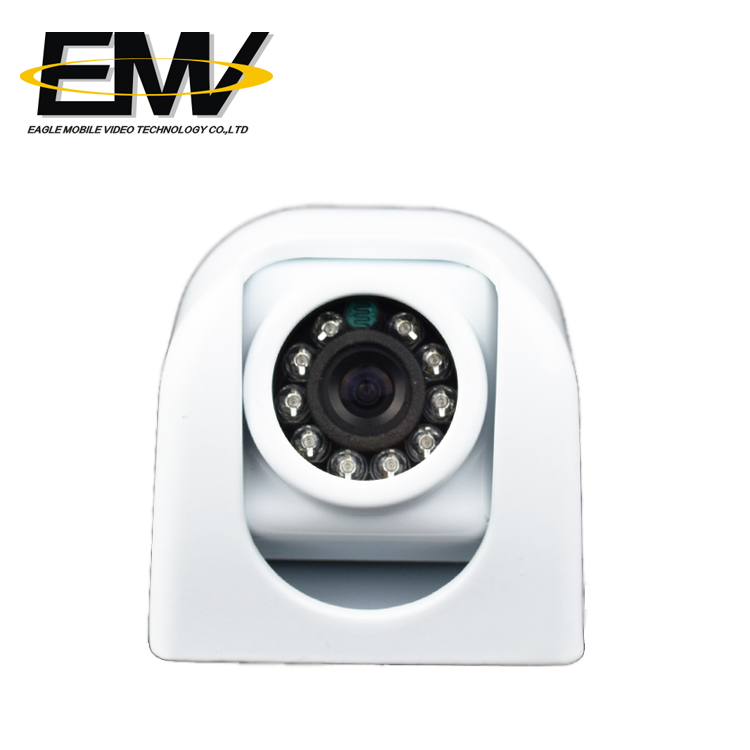

Waterproof Vehicle Night Vision Bus Ip Poe Side View Camera

Product Feature

● Out door IR IP Vehicle Heavy-Duty Camera.

● 1.0/2.0 Mega Pixel 720P/1080P ,1280X720P/1920X1080P.

● Video Compression: H.264 Main Profile; AVI Baseline.

● Main Stream: HD 1920*1080P 1-25fps.

● H.264 Compression Plug & Play,P2P Support Mobile Remote Viewing.

● Support ONVIF2.0/2.2/2.3/2.4.

● 10pcs IR LED, IR distance: 10m-15m.

● Megapixel Lens: 2.8mm/3.6mm /6mm/8mm.

● Support RTSP Compatible with AVI Media Player.

● Onvif Compliant, Support Milestone/Axxon/NUUO/Geovision NVR/Software.

● Smart Phone Support: iPhone, iPad, Android.

● Waterproof: IP69

*****Can work with mdvr hikvision ,Dahua, ICar Vision, Streamax MDVR/MNVR

Eagle Mobile Video-Professional Mobile Dvr Car Security Camera Manufacture

Eagle Mobile Video-Professional Mobile Dvr Car Security Camera Manufacture-1

Product Specification

Model	E-MV0012IH	MV0012WH
Signal System	Progressive image scan
Scanning System	16:9 Progressive
Image Sensor	1/4",1-Megapixels Sony CMOS	1/2.8",2-Megapixels Sony CMOS
Sync. System	Internal
Effective Pixels No.	1280(H) x720(W)	1920(H) x1080(W), 1280(H) x720(W)
Video Output Level	1.0Vp-p (BNC 75Ω composite)
Lens	Megapixel fixed Lens 2.8mm/3.6mm/6mm
IR LED & Visible Range	IR LED 10pcs Φ5mm (850nm/60°), Max.10-15m
Day & Night System	Mechanical ICR
Min. Illumination	0.5Lux(Color) / 0 Lux IR On
Brightness	Auto/Manual
Contrast	Auto/Manual
Mirror	Yes
Heatbeat Message	Yes
Compression	H.264/MJPEG
Frame Rate	1280x720 1-25fps	1920x1080 1-25fps,1280x720 1-25fps
Resolution	1280x720	1920x1080, 1280x720
Code Stream	128Kbps~8Mbps, VBR/CBR
Audio	N/A
Protocol	HTTP, TCP/IP, UDP, SMTP, DDNS, DNS, SNTP, DHCP, FTP, RTP, RTSP, UPNP, ONVIF
DDNS	Yes
LAN Interface	Ethernet 10/100 base-T, RJ45 x1
Support P.o.E.	POE: 802.3a/f , Transmission distance <100m (Optional)
WIFI (802.11b/g/n)	No
User Access Setup	Yes
After Event Process	Upload JPEG via FTP, Email or specified alarm center
ONVIF Standard Access	ONVIF V2.0/V.2.2/V.2.3/V2.4
Motion Detection	Yes, Support Multiple Setting Areas
Browser	Internet Explorer 6.0 or Above
System Upgrade	Yes, Firmware upgrade
PTZ Control	Not Applicable for Fixed Cameras
Power	DC12V/ 48V ,POE:802.3a/f((please confirm the power of MNVR out put to IPC)
Dimension	85mm(L)x75mm(W)x60mm(H)
Weight	0.35kgs
IP Rating	IP69
