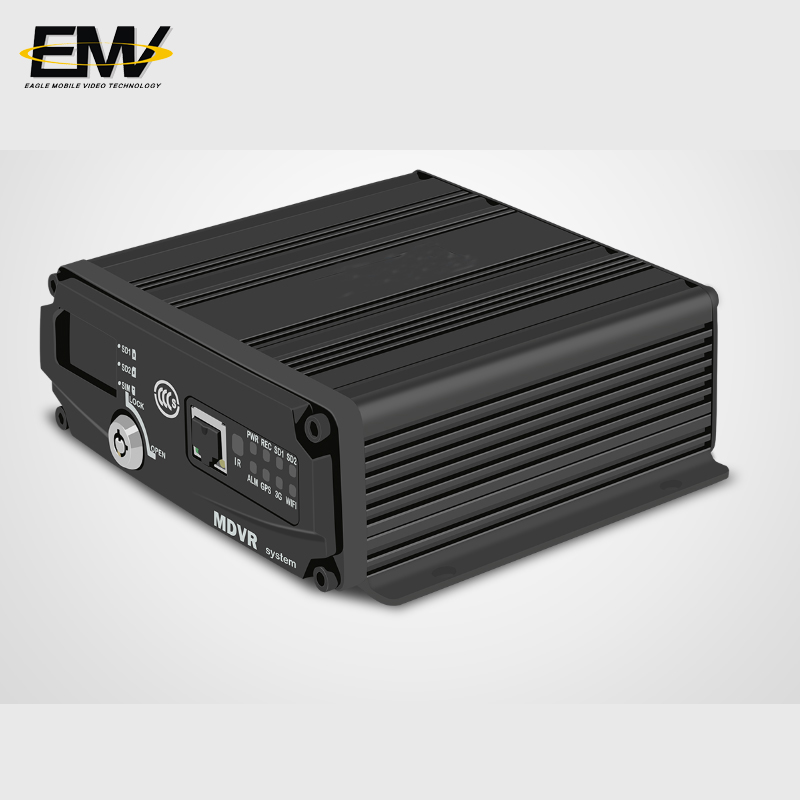

4CH 720P Dual SD Card 2x256GB SD Card MDVR EMV-SC1101

4CH 720P Dual SD Card 2x256GB SD Card MDVR EMV-SC1101

Model
EMV-SC1101
MOQ
1 PCS
Payment
TT / WesterUnion / Paypal
Delivery Time
3 days after payment received
Start Port
ShenZhen,China
Certification
CE / FCC / Emark
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Product Feature

Embedded compact design, low power, high efficient H.264 compress, high reliability.

HIS Solution,H.264 Compression Mode, Many stream recording,4CH Video+4CH Audio Input, Compatible with 4CH 720P/960P Mega Pixels Analog High Definition Camera input /2CH AHD High Definition + 2CH Standard Definition mixed input / 4CH Analog Standard Definition Camera input.

4CH 720P HD recording, supports 2& 256GB SD card.

Optional 3G/4G, GPS, WIFI functions.

Built-in G-sensor.

Data protection when in sudden power off, optional inside-laid UPS battery.

Rich external ports, incl. 2x RS232, 2x RS485, 8x alarm in & 2x alarm out ports, VGA etc.

Auto image switch of car left/right turning, backing change.

With a simple hard disk installation and a good and reliable anti-shake protection system.

Directly mouse controlled menu entering.

Export of video recordings directly via USB port.

CMS platform ability for big fleet and user management.

Simple easy to operate video playback software


Eagle Mobile Video-Mobile Dvr Manufacture | 4ch 720p Dual Sd Card 2x256gb Sd Card Mdvr Emv-sc1101
Eagle Mobile Video-Mobile Dvr Manufacture | 4ch 720p Dual Sd Card 2x256gb Sd Card Mdvr Emv-sc1101-1


Product Specification


ITEMPARAMETER4CH 720P Dual SD Card MDVR
SystemLanguageEnglish
Operation SystemLinux
InterfaceImaging menu operation interface (OSD Menu)
Password SecurityTwo levels authority: admin, user
VideoVideo Input4CH 720P 960P AHD Camera
Video Output1 composite video & 1 VGA outputs
Video standardPAL, NTSC
Video compressionH.264 Main profile, 100 frame / sec
Video DisplaySingle/Quad screen video
AudioAudio Input4 audio input
Audio Output1 audio output
Audio CodeG726
Way of recordingSimultaneous AV recording
Image Processing & StorageImage formatCIF/HD1/D1/720p optional
Standard of Video StreamISO14496-10
Video code rateCIF: 1536Kbps ~ 128Kbps,
HD1: 2048Kbps ~ 380Kbps,
D1: 2048Kbps ~ 400Kbps,
720p: 2048Kbps ~ 4096Kbps,
1080P: 2048kbps~8192kbps
Image quality: Grade 1(best quality) - 8(worst)
Audio Code Rate40KB/s
Data StorageSupport 2x 256GB SD storage
AlarmAlarm input8x Alarm input
Alarm output2x Alarm output, with 12V high electrical level
Communication PortRS232 port2x RS232
RS485 port2x RS485
RJ45 Port1x 10M/100M auto adjust Ethernet port
Extendable PortIntercomsupport
Speed pulseExternal connect
OthersLED panel
Wireless Modules3G WCDMAoptional
4G LTEOptional, support TD-LTE/FDD-LTE
WIFIOptional, 802.11b/g/n
GPSOptional, embedded module, show Geo-location, speed etc. Wireless upload function (Optional)
Acceleration sensorG-sensorBuilt-in
SoftwareVehicle Network Management System (VNMS / CMS)4G 3G video monitoring and GPS tracking etc. PC/ Web/Android/iPhone/iPad platforms, multi-languages.
Vehicle Analysis Software (VAS)Video playback and analysis
ParameterInstruction
+8V~+36VVoltage Input:+8V~+36V Power will be auto off to self-protection activated if device is out of this range for long time,
12VVoltage output 12V (+/-0.2V 0), current for max. 4A
≤6VACC Off
≥7.5VACC On
75ΩAverage 75Ω per video channel
2V p-p75Ω per each 2V p-p CVBS signal
0-4VDefined as low level alarm
Size13.5(W)*4(H)*12(D) cm , 0.7kgs

2x SD slots

SD card of current brands, 2*256GB max.
SD card can be used for recording, upgrade etc.
-20°C~+80°CTemperature in well ventilated condition


Packing & Shipping


We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
