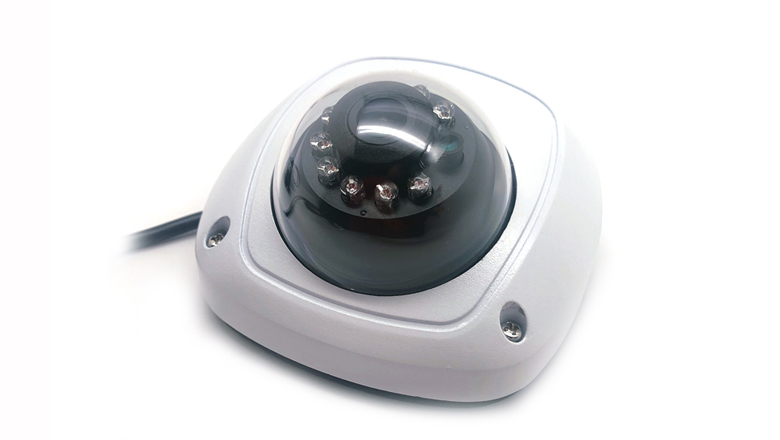

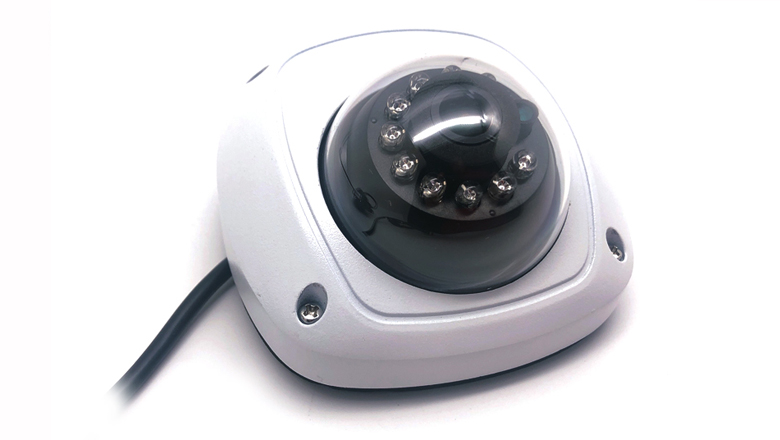

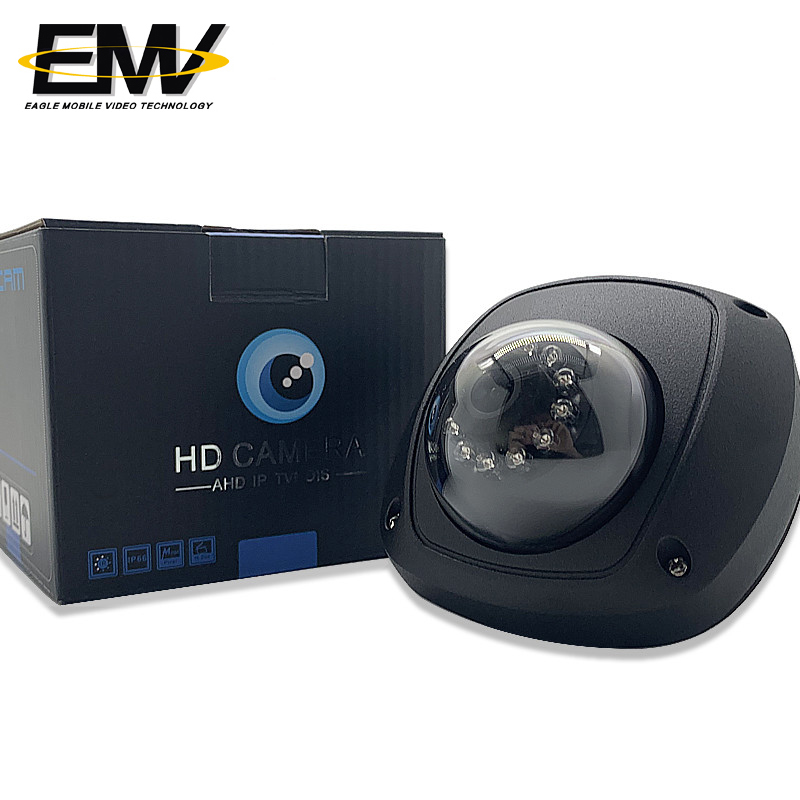

● AHD1080P 960P 720P Vehicle Inside View camera ;
● Dome camera
● Sensor: 1.3 Megapixel 720P AHD,2.0 Megapixel 1080P AHD
● Lens: 2.1mm/2.8mm/3.6mm
● Lens Angle: 90°/100°
● Adio: Without audio
● Infrared LED light: 10PCS(Without IR optional )
● IR Distance: 10m
● Waterproof Rate:IP66
● Shell material: aluminum alloy,Vandalproof
● Vehicle Camera for Truck Fleet application
Model | EMV004YL | EMV004YH |
sensor | 1/4” 720P Megapixel CMOS AHD | 1/3” 1080P Megapixel Sony CMOS |
Effective Pixels | 720P 1.3 Megapixel | 1080P 2.0Megapixel |
Signal system | PAL/NTSC | |
Horizontal resolution | 720P | 1080P |
minimum illumination | 0lux/F1.2 (LED ON) | |
Day & Night System Mechanical ICR | Day & Night System Mechanical ICR | |
Audio | Without Audio | |
lens | F=2.1mm/2.8mm/3.6mm | |
SNR | ≥50dB | |
Shutter speed | PAL:1/50 s -1/100.000 s, NTSC : 1/60s – 1/100.000 s | |
W/B | ATW | |
IR wavelength | No | |
IR light | 10PCS | |
IR distance | 10M | |
Video output | 1Vp-p,75 ohm, BNC | |
Power supply | DC 12V ± 10% ,0.5A , POE optional | |
Working temperature | -10℃~+60℃ | |
Waterproof grade | IP66 | |
Dimension | 95(L) ×95 (w) ×70 (H) mm | |
Weight | 0.3Kgs |
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
