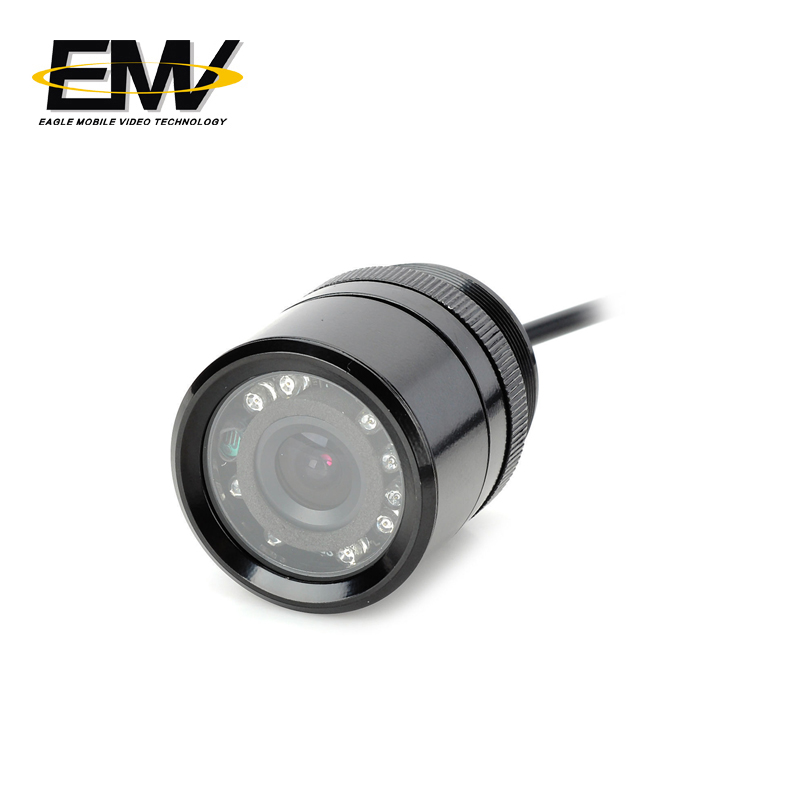

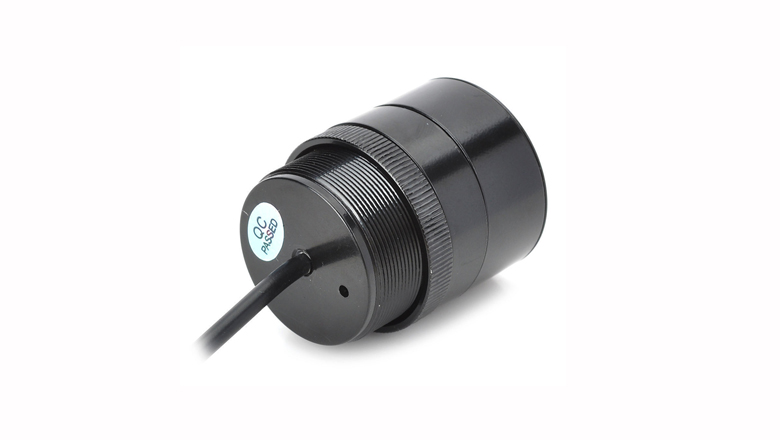

●Mini IP67 Rear view car taxi camera
●Sensor: 1.3 Megapixel 960P AHD
●Lens: 2.5mm/2.8mm/3.6mm
●Lens Angle: 120°
●Audio: Without audio
●Infrared LED light: 10pcs
●IR Distance: 6m
●Waterproof Rate:IP67
●Weight: 0.28KG

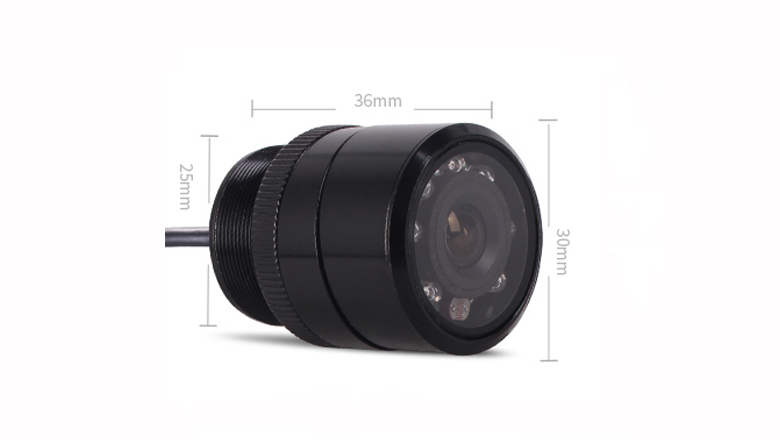

●Dimension : 36(W) x30(H) x25(D)mm
●Color: Black
Model | Mini outdoor Rear view Car camera |
Image Sensor | 1/3" progressive scan CMOS |
Horizontal Resolution | 1.3Mega pixel |
TV system | PAL/NTSC |
Effective pixels | 1280(H)*960(V) |
Minimum Illumination | 0.01Lux@(F1.2,AGC ON),0Lux with IR |
S/N | ≥44dB |
Auto Gain Control | Support |
Back light compensation | Support |
White Balance | AUTO |
Digital Noise Reduction | Adaptive digital noise reduction,2D/3D-DNR |
Electronic Shutter | AUTO/1/50(1/60)-1(50,000Sec) |
Video Output | Follow AHD standard |
Image Function | Original image |
Output Adapter | RCA(BNC/4PIN aviation head cable) |
Lens | 2.5mm/2.8mm/3.6mm |
IR LEDS Quantity | 10pcs |
IR distance | 6m |
IP grade | IP67 |
Operating Temperature/Humidity | -30°C~+70°C/Humidity≤90%(No condensation) |
Power Supply | DC12V±10% |
Power Consumption | ≤1.2W |
Dimension | 36*30*25(mm) |
Common used in car, truck, RV, mini-van etc |
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
