Product Feature

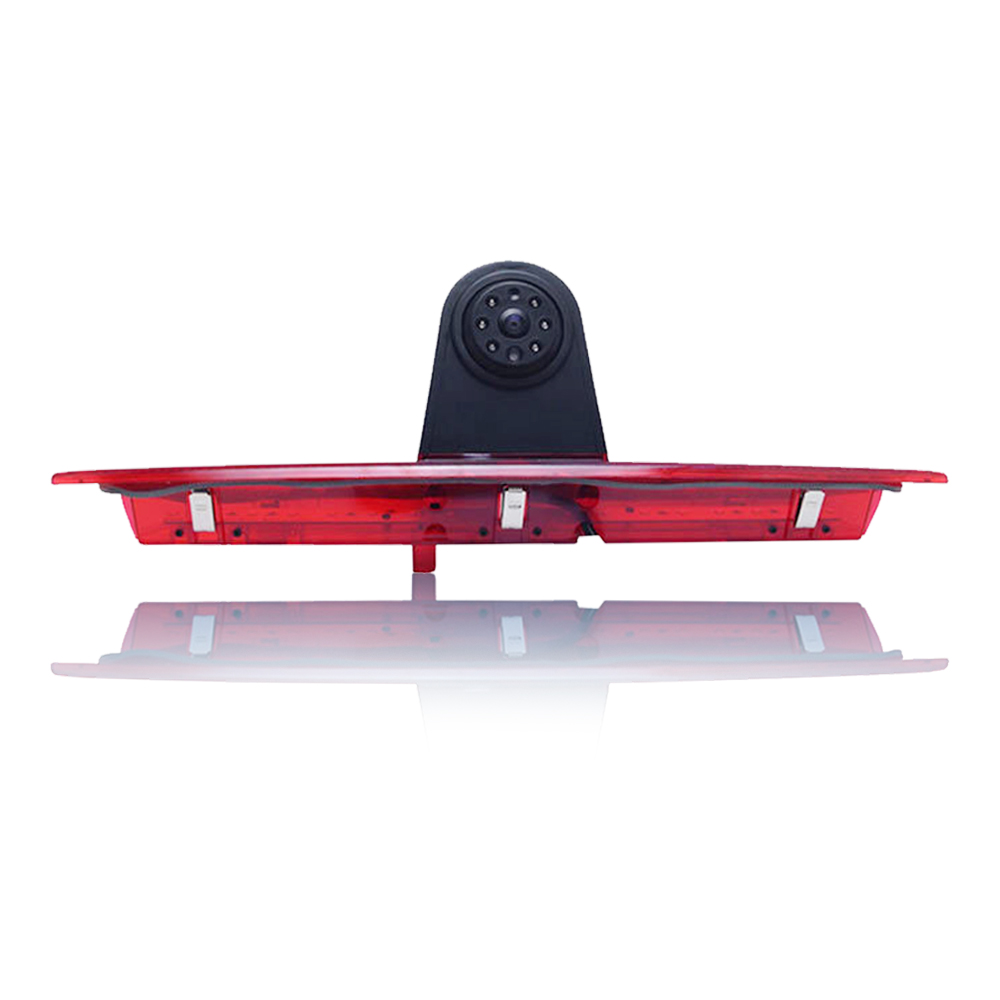

● AHD1080P 960P 720P /960H Analog Vehicle Side View camera ;
● 2.0 Mega Pixel 1080P,1.0Megapixel 720P ,960H (700TVL/1000TVL)
●Lens: 2.1mm2.8mm /3.6mm
●Lens Angle: 170°/150°
●AUdio: Without audio
●IR Distance: 10 m
●IR Light:10PCS
●Waterproof Rate：IP68
●Connector: 4 pin Aviaction Connector / RCA optional
| Model | EMV031AHD | EMV031HAH |
| sensor | 1080P 720P Megapixel CMOS AHD | 1/3” CMOS |
| Effective Pixels | 1080P 720P 2.0/1.0 Megapixel | 960H 1000TVL |
| Signal system | PAL/NTSC | |
| Horizontal resolution | 720P 1080P | PAL:960(H)*596(V) NTSC:960(H)*508(V) |
| minimum illumination | 0lux/F1.2 (LED ON) | |
| Day & Night System Mechanical ICR | Day & Night System Mechanical ICR | |
| Audio | Without Audio | |
| lens | F=2.1mm/2.8mm/3.6mm | |
| SNR | ≥50dB | |
| Shutter speed | PAL:1/50 s -1/100.000 s, NTSC : 1/60s – 1/100.000 s | |
| W/B | ATW | |
| IR wavelength | 940NM | |
| IR light | 10PCS | |
| IR distance | 10M | |
| Video output | 1Vp-p,75 ohm, BNC | |
| Power supply | DC 12V ± 10% ,0.5A , POE optional | |
| Working temperature | -10℃~+60℃ | |
| Waterproof grade | IP67 | |
| Dimension | 386mm x 125mm X54 | |
| Weight | 0.95Kgs | |
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
