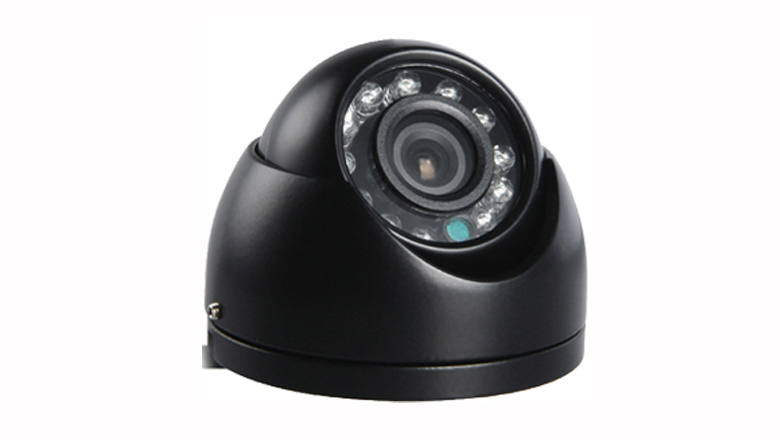

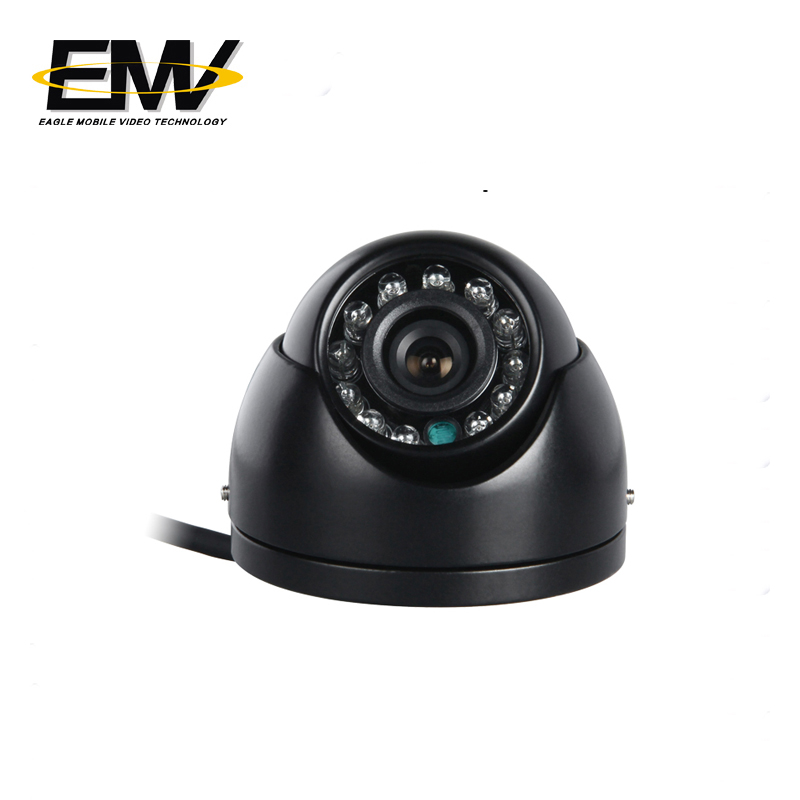

● AHD1080P 960P Vehicle Inside View camera ;
● Dome Bus camera
● Sensor: 1.3 Megapixel 960P AHD,2.0 Megapixel 1080P AHD
● Lens:2.8mm/3.6mm/6mm
● Lens Angle: 90°/100°
● Audio: Without audio(optional)
● Infrared LED light: 12PCS
● IR Distance: 10m
● Waterproof Rate:IP66
● Shell material: aluminum alloy,Vandalproof
● Vehicle Camera for Truck Fleet application
Model | EMV002BA | EMV002BB |
sensor | 1/3” 960P Megapixel CMOS AHD | 1/3” 1080P Megapixel Sony CMOS |
Effective Pixels | 960P 1.3 Megapixel | 1080P 2.0Megapixel |
Signal system | PAL/NTSC | |
Horizontal resolution | 960P | 1080P |
minimum illumination | 0lux/F1.2 (LED ON) | |
Day & Night System Mechanical ICR | Day & Night System Mechanical ICR | |
Audio | Without Audio(Optional Audio) | |
lens | F=2.8mm/3.6mm/6mm | |
SNR | ≥50dB | |
Shutter speed | PAL:1/50 s -1/100.000 s, NTSC : 1/60s – 1/100.000 s | |
W/B | ATW | |
IR wavelength | No | |
IR light | 12PCS | |
IR distance | 10M | |
Video output | 1Vp-p,75 ohm, BNC | |
Power supply | DC 12V ± 10% ,0.5A , POE optional | |
Working temperature | -10℃~+60℃ | |
Waterproof grade | IP66 | |

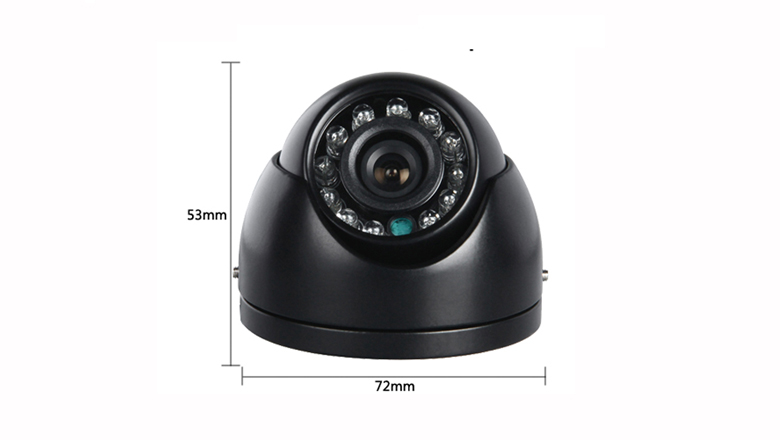

Dimension | 72(L) ×72(w) ×53(H) mm | |
Weight | 0.2Kgs |
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
