Product Feature

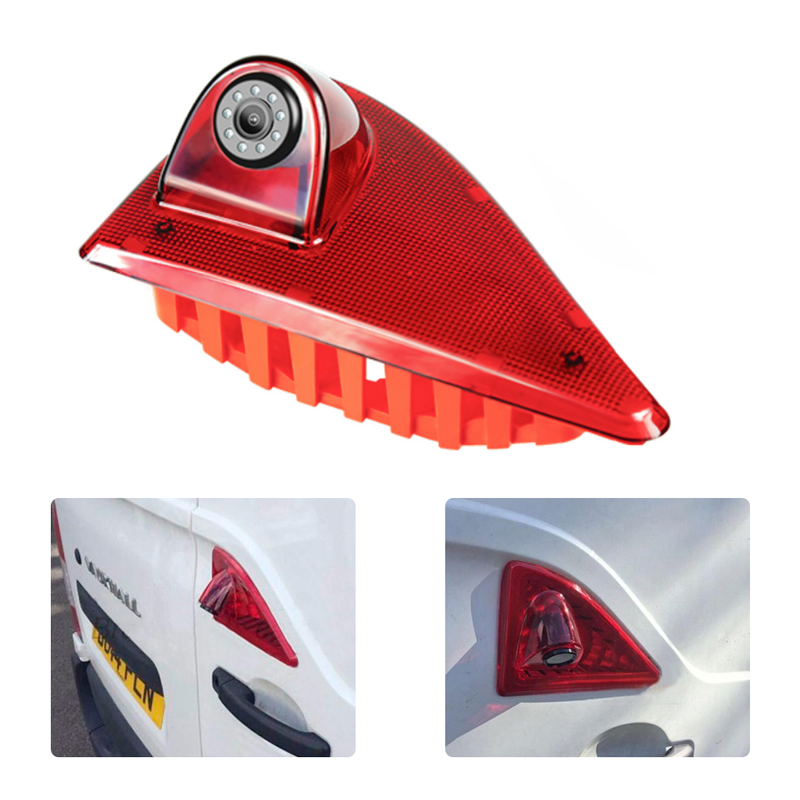

● AHD1080P 960P 720P /960H Analog Vehicle Side View camera ;
● 2.0 Mega Pixel 1080P,1.0Megapixel 720P ,960H (700TVL/1000TVL)
●Lens: 2.1mm2.8mm /3.6mm
●Lens Angle: 170°/150°
●AUdio: Without audio
●IR Distance: 10 m
●IR Light:10PCS
●Waterproof Rate:IP67
●Connector: 4 pin Aviaction Connector / RCA optional
Model | EMV031CAHD | EMV031CA |
sensor | 1080P 720P Megapixel CMOS AHD | 1/3” CMOS |
Effective Pixels | 1080P 720P 2.0/1.0 Megapixel | 960H 1000TVL |
Signal system | PAL/NTSC | |
Horizontal resolution | 720P 1080P | PAL:960(H)*596(V) NTSC:960(H)*508(V) |
minimum illumination | 0lux/F1.2 (LED ON) | |
Day & Night System Mechanical ICR | Day & Night System Mechanical ICR | |
Audio | Without Audio | |
lens | F=2.1mm/2.8mm/3.6mm | |
SNR | ≥50dB | |
Shutter speed | PAL:1/50 s -1/100.000 s, NTSC : 1/60s – 1/100.000 s | |
W/B | ATW | |
IR wavelength | 940NM | |
IR light | 10PCS | |
IR distance | 10M | |
Video output | 1Vp-p,75 ohm, BNC | |
Power supply | DC 12V ± 10% ,0.5A , POE optional | |
Working temperature | -10℃~+60℃ | |
Waterproof grade | IP67 | |
Dimension | 195mm x 125mm | |
Weight | 0.75Kgs |
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
