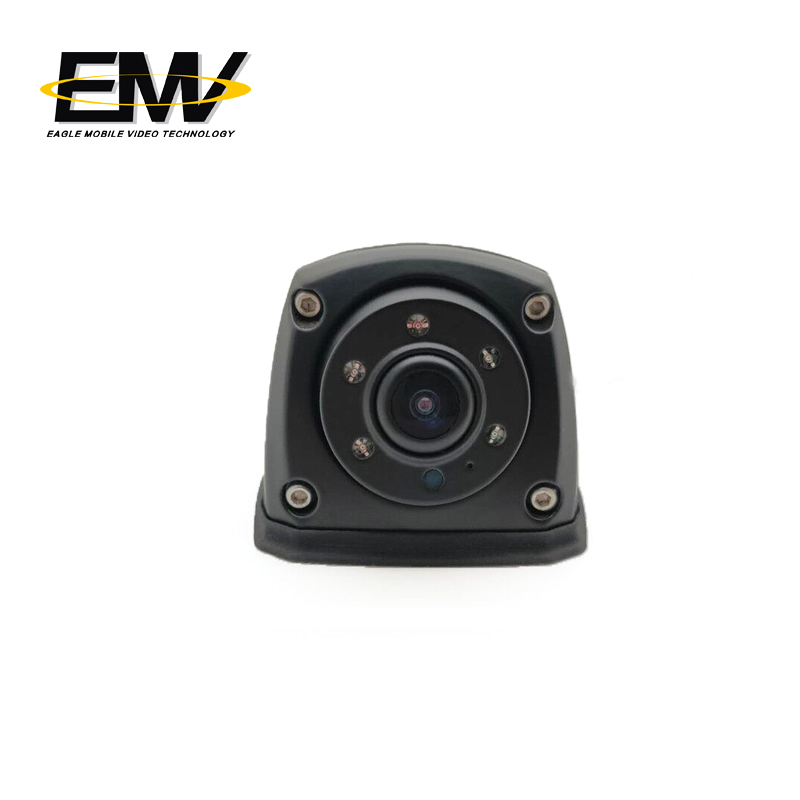

● AHD1080P 960P Vehicle Metal mini side view camera ;
● Main Stream:HD 1920*1080 1-25 fps
● 2.0 Mega Pixel 1080P,1920X1080P ;1.3 Mega Pixel 960P,1280X960P ;
●Lens: 2.1mm/2.8mm/3.6mm
●Lens Angle: 150°/100°
●IR Light:5pcs
●Waterproof Rate:IP69K
Model | EMV-012R |
CCD or CMOS | 1/3"CMOS; |
Resolution | 960P 1080P AHD |
Effective Pixels | PAL: 1280(H) x 960(V);1920(H) x 1080(V) NTSC: 1280(H) x 960(V);1920(H) x 1080(V)
|
TV System | PAL / NTSC Optional |
Auto Control | Auto Gain Control, Back Light Compensation White Balance, Electronic Shutter |
Image Mirror | Optional Before Factory |
Lens | f=2.2mm View Angle 150degree |
Light Sensitivity | 0.1 Lux, 0 Lux @ F1.2 (IR ON) |
Infrared Spectrum | 850nm |
Infrared LED Range | 5 LEDs Φ 5 Meters |
Auto IR control | 3~5 Lux Cut |
Signal to Noise Ratio | SNR>48 dB, (AGC Close) |
Video Output | 1V p-p, 75Ω, |
Audio Output | Null |
Power Consumption | 12V DC ± 5%, 80mA, 135mA(IR ON) Max 1.60W |
A / V, Power Interface | Aviation, 4pin ,RCA,BMW ICOM Interface Optional |
Dimensions | (L x W x H) 68 x 56 x 48 mm |
Product Weight | Net: 150 g, All: 255 g |
Waterproof | IP69k |
Operating Condition | Temp.:-25°C to +55°C, Humidity<95% |
Color | Black |
Packing & Shipping
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
